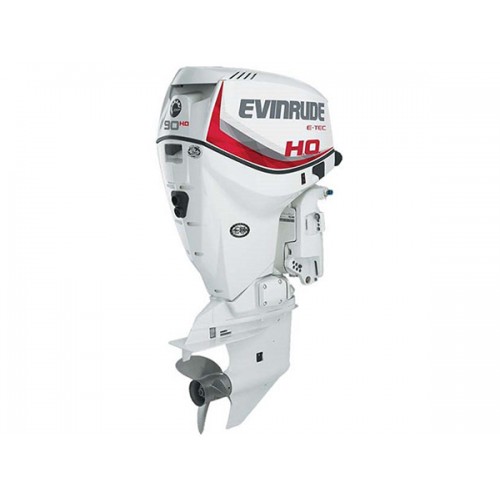

2019 Evinrude 90 HP E90HSL Outboard Motor

2019 Evinrude 90 HP E90HSL Outboard Motor

Engine Type: V6 60 deg. E-TEC D.I.

Bore x Stroke: 3.62 x 2.60 in. (92 x 66 mm)

Displacement: 105.4 cu.in. (1727cc) 1.7L

Shaft Length: 20 in. (508 mm)

Trim Method: Trac-1 Power Trim and Tilt

Propshaft Horsepower: 90 hp

Full Throttle Operating Range: 5500-6000 rpm

Gear Ratio / Shift: 2.00:1

Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode

Alternator: 133 Amps Total / 50 Net Dedicated

Steering: Remote (Tiller accessory)

Warranty: 3-Year, Non-Declining

High Output Series: The Evinrude E-TEC H.O. series are performance engines to the max. Each engine is tuned for extra power and speed. If you like pushing limits in horsepower, speed and torque, then consider our High Output Series.

Auto-Storage: The auto winterization feature fogs the engines itself in minutes, with no trip to the dealer. An Evinrude E-TEC engine does not require belts, camshafts or exhaust valves, which means there are fewer parts to wear down or malfunction than a four--stroke outboard. Extend the life of your outboard and your boating season.

More Miles Per Hour: Get even more extra miles per hour with the Straight Leading Edge gearcase. The Evinrude SLE gearcase features high-efficiency water pickups and a weed-slicing shape up front, for a cooler-running engine and ultimate durability and reliability in the long run.

Engine Model: E90HSL White

Engine Type: V4 60° E-TEC D.I.

Bore x Stroke - in (mm): 3.62 x 2.60 (92 x 66)

Displacement - cu in (cc) L: 105.4 (1727) 1.7L

Full Throttle RPM Range: 5500-6000 RPM

Weight - lbs (kg): 390 (177)

Alternator Output*: 133 Amps Total / 50 Net Dedicated

Shaft Length - in (mm): 20 (508)

Lubrication: Multi-Point Targeted Oiling

Oil Tank Capacity - gal (L): Accessory 1.8 (6.8) 3 (11.3) & 10 (37.85) Tank Available

Recommended Oil: Evinrude / Johnson XD-100 Oil

Recommended Fuel: 87 Octane

Emissions Compliance: EPA 2013 / CARB 3 STAR / European Union
